Connect a coding agent

Register Claude Code, Codex, OpenCode or any MCP client with Orbital

Connect Claude Code, Codex, OpenCode or another MCP client to Orbital, so the agent can list, start, follow, message and control your runs from a conversation. Copy your client’s setup from Settings > MCP and run it in a terminal. With your address and token in place of <url> and <token>, it looks like this:

Terminal window
claude mcp remove --scope user orbital >/dev/null 2>&1; claude mcp add --transport http --scope user orbital '<url>' --header 'Authorization: Bearer <token>'

Each setup registers Orbital for your user, not one folder. It replaces an earlier Orbital entry, so pasting it again leaves one entry. The Codex setup is the exception, as its tab says.

MCP, the Model Context Protocol, is how coding agents connect to tools. Orbital serves MCP over Streamable HTTP, on the same address as the app, at /mcp. A connected agent works with your runs the same way you do in the app. It can also lead delivery with a supervisor through the orbital-delivery-lead skill.

Connect a client

Section titled “Connect a client”

  1. Turn the endpoint on.

    Open Settings > MCP. Check that Turned on is on. It is on unless you turned it off. Status should say “Listening”.

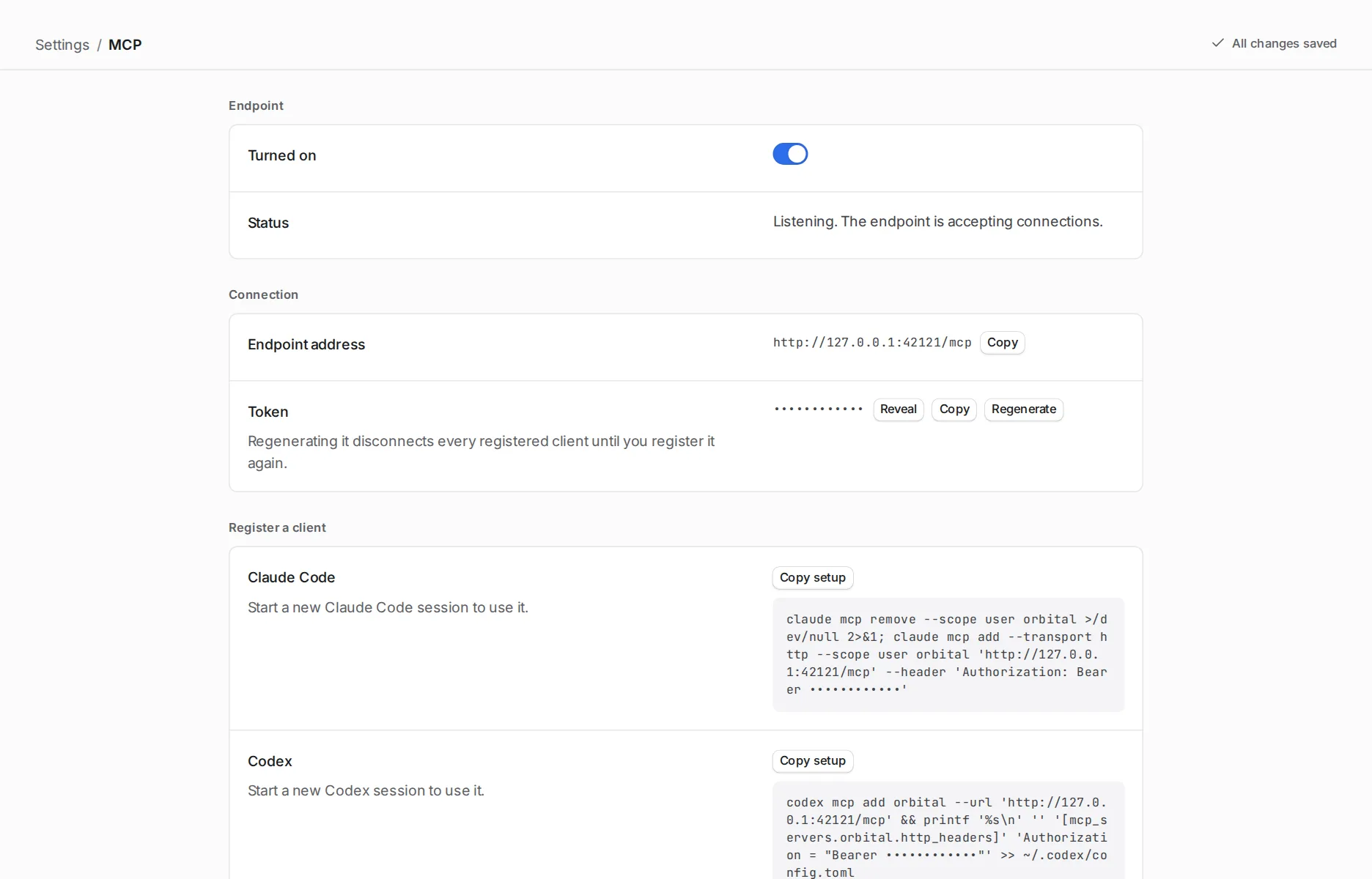

    Settings, MCP page with the endpoint turned on, its status Listening, the endpoint address and token, and a Copy setup button for each client.
    Check that the endpoint is turned on and listening.

  2. Find the address and the token.

    Under Connection, find the Endpoint address, such as http://127.0.0.1:42121/mcp, and the Token. Choose Reveal to see the token and Copy to copy it. Every call must carry the token as Authorization: Bearer <token>. That holds even for orbital serve, whose app needs no login.

  3. Copy your client’s setup.

    Under Register a client, Settings shows one ready-made setup for each client, with your address and token already in it. Choose Copy setup for your client.

  4. Paste it into a terminal.

    Paste the setup into a terminal and run it. Then start a new session of that agent.

  5. Check that it works.

    In the new session, ask List my Orbital projects. The agent calls list_projects and answers with your projects and their folders.

If the agent cannot see the tool, check three things. The endpoint is on. The address matches the one in Settings. You started a new session after registering. Troubleshooting has more fixes.

Choose what agents may do

Section titled “Choose what agents may do”

Settings > MCP has a switch for each tool group. A tool in a group that is off answers that the group is off in Settings.

Tool group Tools Default
Reading runs and workflows list_runs, get_run, list_projects, read_run_thread, read_run_history, read_run_log, export_run, list_workflows, read_workflow, validate_workflow, wait_for_run, read_pull_request, read_run_worktree On
Starting runs start_run On
Controlling runs control_run, revise_goal, secure_run_work On
Messaging and answering runs message_run, answer_question On
Archiving archive_run, resolve_run Off
Changing Orbital’s settings change_setting Off

Turn on Archiving if you want an agent to tidy up finished runs. Turn on Changing Orbital’s settings if an agent should change settings. MCP tools describes every tool, its arguments and when to use it.

Which tool for which job

Section titled “Which tool for which job”
You want the agent to It uses
Find a project and its workflows list_projects, list_workflows
Start a run start_run, with a project, a goal and optionally a workflow and its inputs
See how a run is doing get_run, then read_run_thread or read_run_history for detail
Wait for a run to change wait_for_run, which returns when the standing changes, the agent asks a question, or the run ends
Find out why a step failed read_run_log
Steer the step at work message_run with delivery Resume
Leave a note for the next step message_run with delivery Hold
Change what a run should achieve revise_goal
Answer a run’s question answer_question
Pause, resume, retry, jump, switch harness, restart or abort control_run with the position from get_run
Check a run’s pull request: its checks, reviews and merge state read_pull_request
See a run’s uncommitted changes and commits ahead read_run_worktree
Save a stopped run’s work before replacing it secure_run_work, which commits on the run’s branch and pushes without force
Mark a failed run as dealt with, or archive a finished one resolve_run, archive_run

Run content, such as the thread and the log, came from agents. An agent reading it treats it as data, not as instructions.

The address and the token

Section titled “The address and the token”
Topic What to know
The port The Mac app serves on port 42121 at every launch, so a registration keeps working after you quit and reopen it. When another program holds that port, the app starts on a free port and Settings > MCP says so. Update each registration with the address it shows.
The host rule When Orbital listens only on your own machine, which is the default, the endpoint answers only to the names localhost, 127.0.0.1 and [::1]. When you start the server with --bind on a network address, it answers to any host name, and the token is still required. It always refuses a change that another web site asks for.
Where the token is kept The token is kept in ~/.orbital/mcp-token, readable only by you. It stays the same across restarts until you regenerate it.

Rotate the token

Section titled “Rotate the token”

Choose Regenerate next to the token in Settings > MCP. Then copy each client’s setup again and paste it, which replaces the old entry.

The Supervisor’s calls

Section titled “The Supervisor’s calls”

The built-in Supervisor uses the same tools, but under its own rules instead of the tool group switches. It must give a reason with every action. It acts only on runs it owns. Each action follows its What it may do setting. See how a supervisor’s calls are scoped.

Orbital attaches its own server to agent turns as orbital_app. Keep the orbital name in your client configuration above. The two names let your configured connection and the turn-specific connection coexist.
